簡介

該文檔主要介紹以Nacos為配置中心，實現Spring Cloud GateWay 實現動態路由的功能。Spring Cloud Gateway啟動時候，就將路由配置和規則加載到內存里，無法做到不重啟網關就可以動態的對應路由的配置和規則進行增加，修改和刪除。通過nacos的配置下發的功能可以實現在不重啟網關的情況下，實現動態路由。

集成

Spring Cloud GateWay集成

spring-cloud-starter-gateway:路由轉發、請求過濾（權限校驗、限流以及監控等）

spring-boot-starter-webflux:反應式Web框架

spring-boot-starter-actuator:監控系統健康

<dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-starter-gateway</artifactId></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-webflux</artifactId></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-actuator</artifactId></dependency>

Nacos集成

nacos-client:nacos客戶端，現在用比較新的版本0.9.0

<dependency><groupId>com.alibaba.nacos</groupId><artifactId>nacos-client</artifactId><version>0.9.0</version></dependency>

動態路由

DynamicRouteServiceImpl:提供動態路由的基礎方法，可通過獲取bean操作該類的方法。該類提供新增路由、更新路由、刪除路由，然后實現發布的功能。

@Servicepublic class DynamicRouteServiceImpl implements ApplicationEventPublisherAware { @Autowired private RouteDefinitionWriter routeDefinitionWriter; private ApplicationEventPublisher publisher; /** * 增加路由 * @param definition * @return */ public String add(RouteDefinition definition) { routeDefinitionWriter.save(Mono.just(definition)).subscribe(); this.publisher.publishEvent(new RefreshRoutesEvent(this)); return 'success'; } /** * 更新路由 * @param definition * @return */ public String update(RouteDefinition definition) { try { this.routeDefinitionWriter.delete(Mono.just(definition.getId())); } catch (Exception e) { return 'update fail,not find route routeId: '+definition.getId(); } try { routeDefinitionWriter.save(Mono.just(definition)).subscribe(); this.publisher.publishEvent(new RefreshRoutesEvent(this)); return 'success'; } catch (Exception e) { return 'update route fail'; } } /** * 刪除路由 * @param id * @return */ public String delete(String id) { try { this.routeDefinitionWriter.delete(Mono.just(id)); return 'delete success'; } catch (Exception e) { e.printStackTrace(); return 'delete fail'; } } @Override public void setApplicationEventPublisher(ApplicationEventPublisher applicationEventPublisher) { this.publisher = applicationEventPublisher; }}

RouteDefinition： 提供路由實體類，主要有predicates匹配來自用戶的請求，filters服務路由

@Validatedpublic class RouteDefinition {@NotEmptyprivate String id = UUID.randomUUID().toString();@NotEmpty@Validprivate List<PredicateDefinition> predicates = new ArrayList<>();@Validprivate List<FilterDefinition> filters = new ArrayList<>();@NotNullprivate URI uri;private int order = 0;public RouteDefinition() {}public RouteDefinition(String text) {int eqIdx = text.indexOf('=');if (eqIdx <= 0) {throw new ValidationException('Unable to parse RouteDefinition text ’' + text + '’' +', must be of the form name=value');}setId(text.substring(0, eqIdx));String[] args = tokenizeToStringArray(text.substring(eqIdx+1), ',');setUri(URI.create(args[0]));for (int i=1; i < args.length; i++) {this.predicates.add(new PredicateDefinition(args[i]));}}public String getId() {return id;}public void setId(String id) {this.id = id;}public List<PredicateDefinition> getPredicates() {return predicates;}public void setPredicates(List<PredicateDefinition> predicates) {this.predicates = predicates;}public List<FilterDefinition> getFilters() {return filters;}public void setFilters(List<FilterDefinition> filters) {this.filters = filters;}public URI getUri() {return uri;}public void setUri(URI uri) {this.uri = uri;}public int getOrder() {return order;}public void setOrder(int order) {this.order = order;}@Overridepublic boolean equals(Object o) {if (this == o) return true;if (o == null || getClass() != o.getClass()) return false;RouteDefinition routeDefinition = (RouteDefinition) o;return Objects.equals(id, routeDefinition.id) &&Objects.equals(predicates, routeDefinition.predicates) &&Objects.equals(order, routeDefinition.order) &&Objects.equals(uri, routeDefinition.uri);}@Overridepublic int hashCode() {return Objects.hash(id, predicates, uri);}@Overridepublic String toString() {return 'RouteDefinition{' +'id=’' + id + ’’’ +', predicates=' + predicates +', filters=' + filters +', uri=' + uri +', order=' + order +’}’;}}

NacosGatewayProperties:自定義屬性綁定值，可通過配置文件配置屬性。

@ConfigurationProperties(prefix='nacos', ignoreUnknownFields = true)@Configurationpublic class NacosGatewayProperties {private String address;private String dataId;private String groupId;private Long timeout;public String getAddress() {return address;}public void setAddress(String address) {this.address = address;}public String getDataId() {return dataId;}public void setDataId(String dataId) {this.dataId = dataId;}public String getGroupId() {return groupId;}public void setGroupId(String groupId) {this.groupId = groupId;}public Long getTimeout() {return timeout;}public void setTimeout(Long timeout) {this.timeout = timeout;}}

DynamicRouteServiceImplByNacos： 實現runner，通過nacos下發動態路由配置

@Componentpublic class DynamicRouteServiceImplByNacos implements CommandLineRunner{@Autowired private DynamicRouteServiceImpl dynamicRouteService;@Autowired private NacosGatewayProperties nacosGatewayProperties; /** * 監聽Nacos Server下發的動態路由配置 * @param dataId * @param group */ public void dynamicRouteByNacosListener (){ try { ConfigService configService=NacosFactory.createConfigService(nacosGatewayProperties.getAddress()); String content = configService.getConfig(nacosGatewayProperties.getDataId(), nacosGatewayProperties.getGroupId(), nacosGatewayProperties.getTimeout()); System.out.println(content); configService.addListener(nacosGatewayProperties.getDataId(), nacosGatewayProperties.getGroupId(), new Listener() {@Overridepublic void receiveConfigInfo(String configInfo) {List<RouteDefinition> list = JsonUtils.toList(configInfo, RouteDefinition.class);list.forEach(definition->{dynamicRouteService.update(definition);});}@Overridepublic Executor getExecutor() { return null;} }); } catch (NacosException e) { e.printStackTrace(); } }@Overridepublic void run(String... args) throws Exception { dynamicRouteByNacosListener();} }

nacos配置下發

nacos配置

nacos: address: 127.0.0.1:8848 data-id: dhap-gateway # group-id: AAA timeout: 5000

nacos屬性文件定義

新建dataID為groupID為AAA

[{'filters': [],'id': 'blog1','order': 0,'predicates': [{'args': {'pattern': '/z'},'name': 'Path'}],'uri': 'https://blog.csdn.net/zhangchangbin123'}, {'filters': [],'id': 'blog1','order': 0,'predicates': [{'args': {'pattern': '/c'},'name': 'Path'}],'uri': 'https://blog.csdn.net/zhangchangbin123'}]

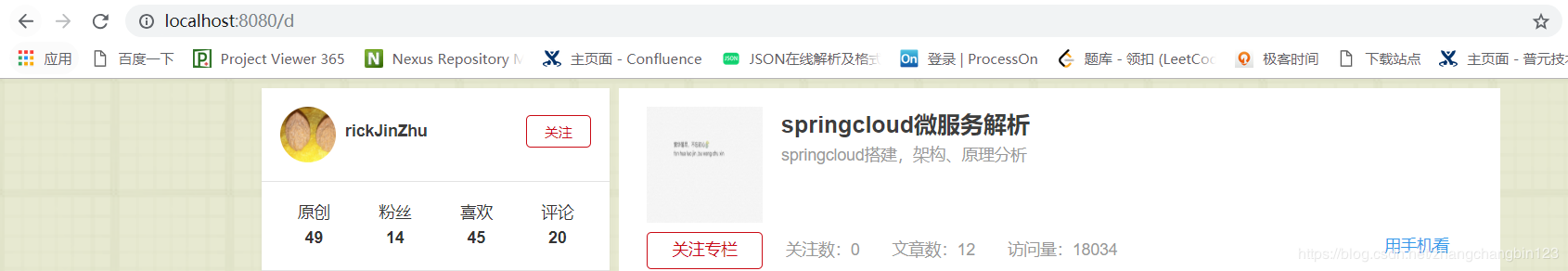

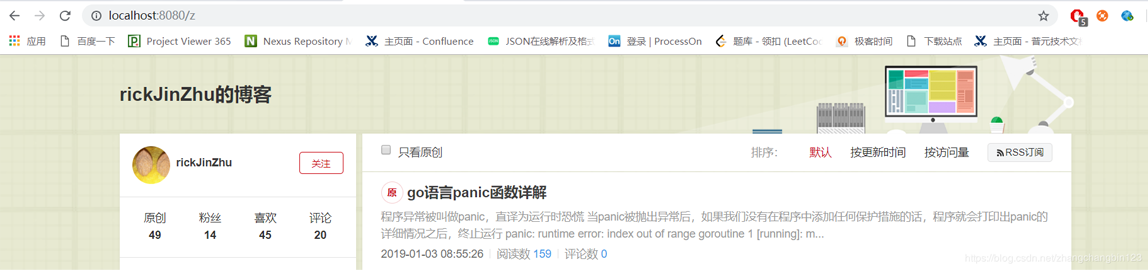

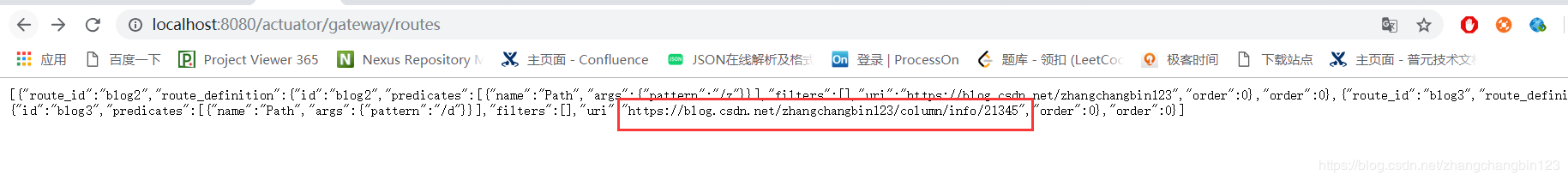

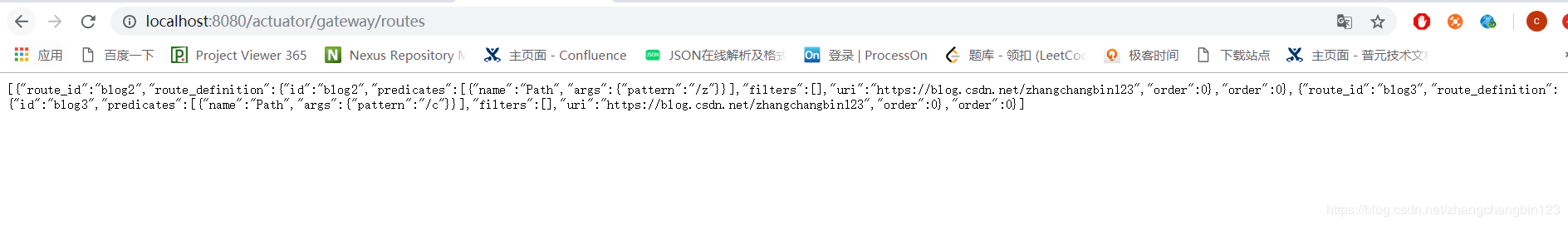

查看路由信息
