在項目開發中，web項目的前后端分離開發，APP開發，需要由前后端工程師共同定義接口，編寫接口文檔，之后大家都根據這個接口文檔進行開發，到項目結束前都要一直維護

接口文檔使得項目開發過程中前后端工程師有一個統一的文件進行溝通交流開發，項目維護中或者項目人員更迭，方便后期人員查看、維護

一、界面先賞

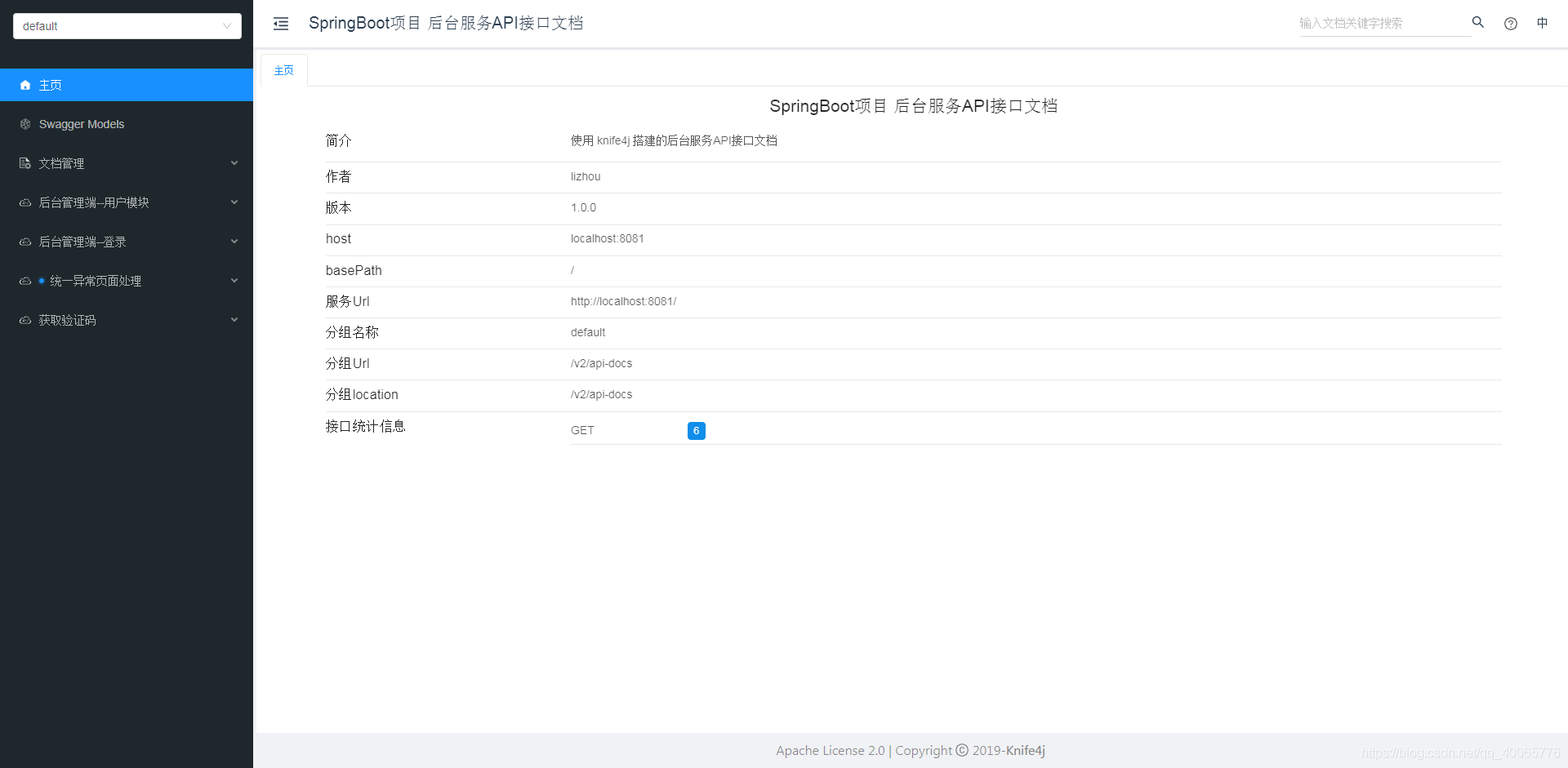

1、首頁

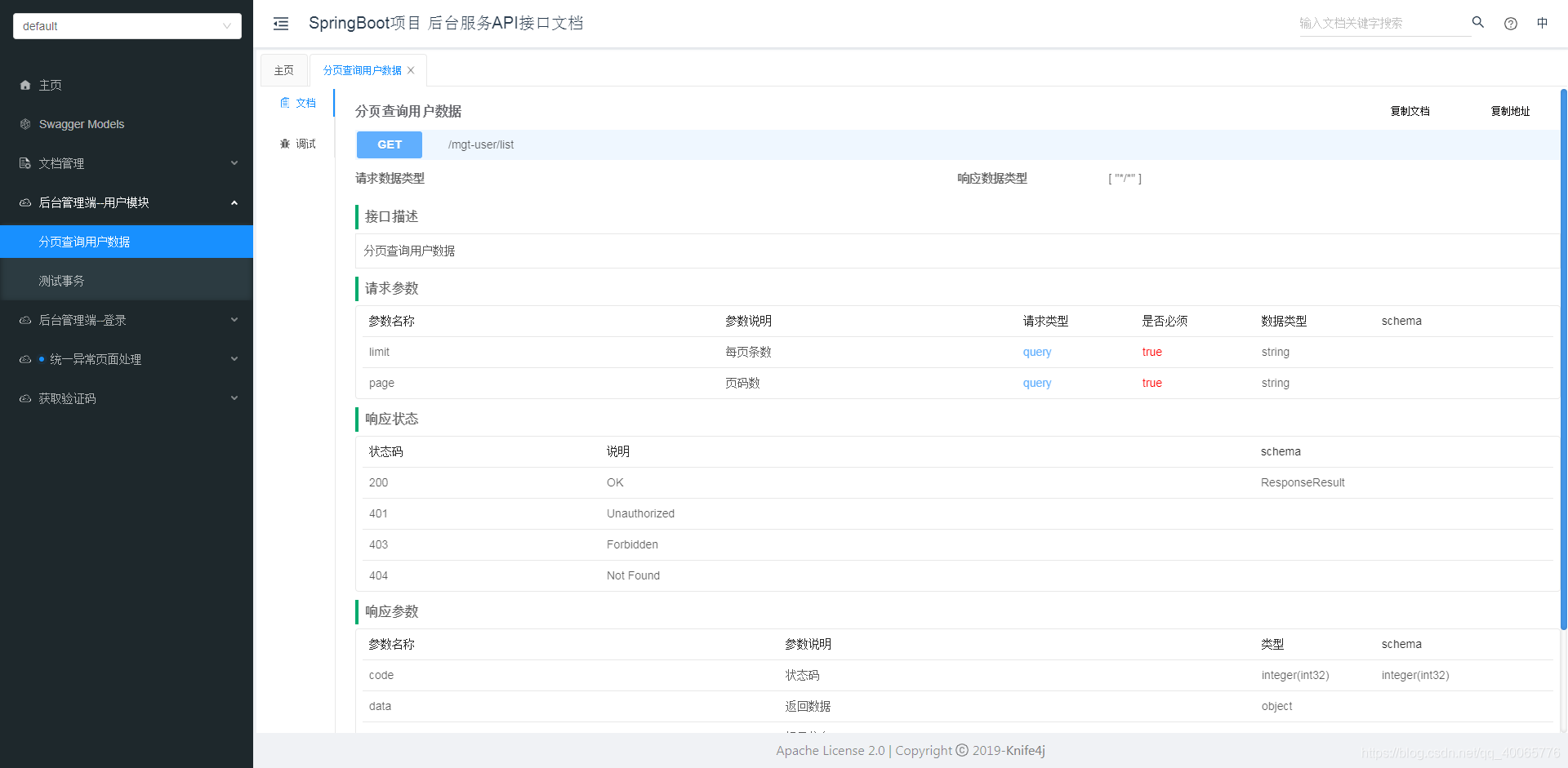

2、接口文檔

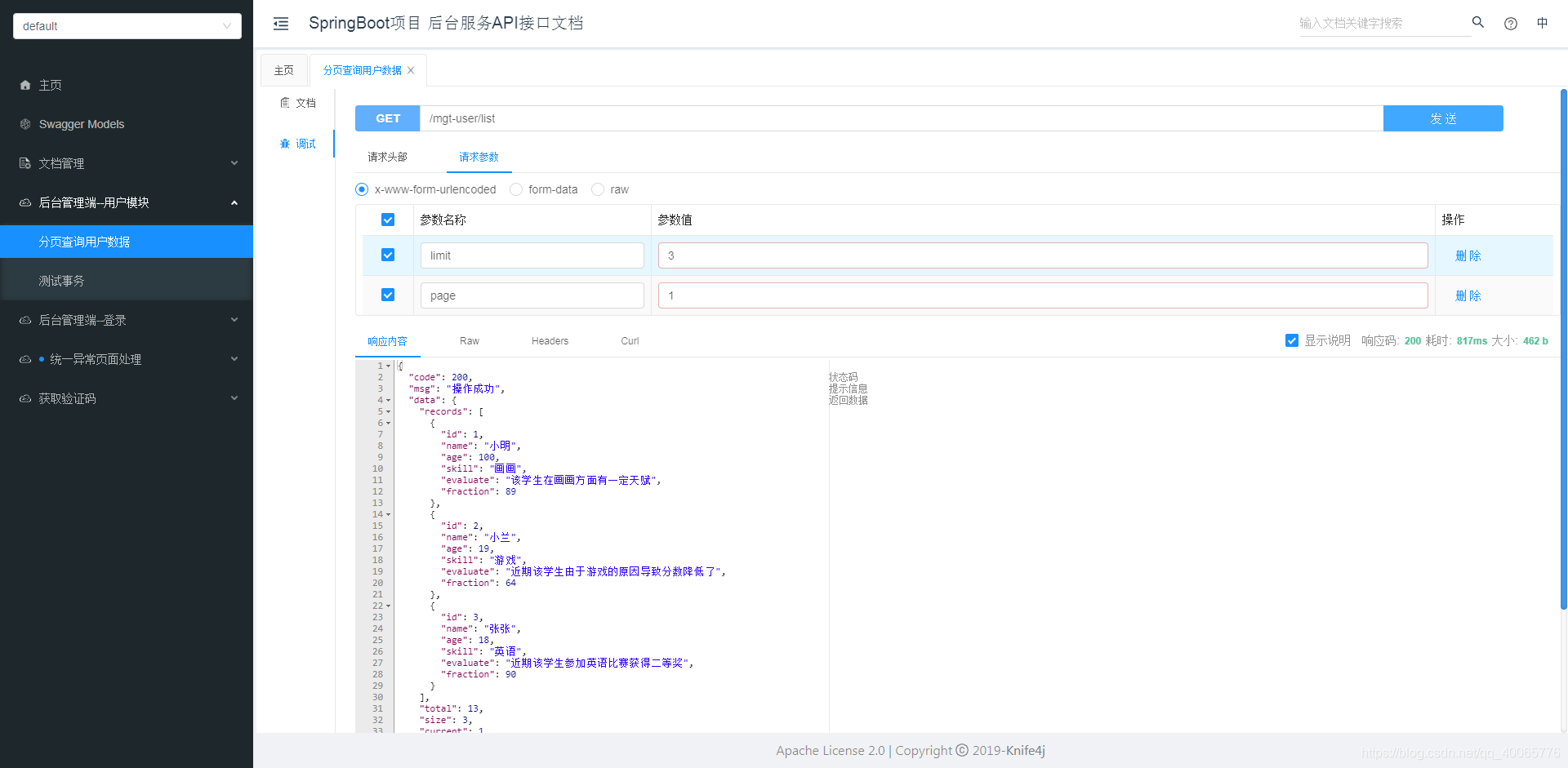

3、調試

二、整合 knife4j

1、引入 maven 依賴

<!-- knife4j接口文檔 start --><dependency> <groupId>com.github.xiaoymin</groupId> <artifactId>knife4j-spring-boot-starter</artifactId> <version>2.0.2</version></dependency><!-- 避免版本沖突 --><dependency> <groupId>com.google.guava</groupId> <artifactId>guava</artifactId> <version>29.0-jre</version></dependency>

一般情況我們只需要引入 knife4j 的依賴即可，但是有時會出現 guava 的版本沖突，所以，我們把 guava 一起引入進來

2、knife4j 配置文件

創建 Knife4jConfig 文件

import org.springframework.context.annotation.Bean;import org.springframework.context.annotation.Configuration;import springfox.documentation.builders.ApiInfoBuilder;import springfox.documentation.builders.PathSelectors;import springfox.documentation.builders.RequestHandlerSelectors;import springfox.documentation.service.ApiInfo;import springfox.documentation.spi.DocumentationType;import springfox.documentation.spring.web.plugins.Docket;import springfox.documentation.swagger2.annotations.EnableSwagger2;/** * knife4j 配置 * * @Author Lizhou */@Configuration@EnableSwagger2public class Knife4jConfig { @Bean public Docket createRestApi() { return new Docket(DocumentationType.SWAGGER_2).apiInfo(apiInfo()).select().apis(RequestHandlerSelectors.basePackage('com.zyxx')).paths(PathSelectors.any()).build(); } private ApiInfo apiInfo() { return new ApiInfoBuilder().title('SpringBoot項目 后臺服務API接口文檔').description('使用 knife4j 搭建的后臺服務API接口文檔').termsOfServiceUrl('http://localhost:8080/').contact('lizhou').version('1.0.0').build(); }}

整體配置與 Swagger2 幾乎一致，掃描 controller 所在的包

3、啟動類

import org.springframework.context.annotation.Bean;import org.springframework.context.annotation.Configuration;import springfox.documentation.builders.ApiInfoBuilder;import springfox.documentation.builders.PathSelectors;import springfox.documentation.builders.RequestHandlerSelectors;import springfox.documentation.service.ApiInfo;import springfox.documentation.spi.DocumentationType;import springfox.documentation.spring.web.plugins.Docket;import springfox.documentation.swagger2.annotations.EnableSwagger2;/** * knife4j 配置 * * @Author Lizhou */@Configuration@EnableSwagger2public class Knife4jConfig { @Bean public Docket createRestApi() { return new Docket(DocumentationType.SWAGGER_2).apiInfo(apiInfo()).select().apis(RequestHandlerSelectors.basePackage('com.zyxx')).paths(PathSelectors.any()).build(); } private ApiInfo apiInfo() { return new ApiInfoBuilder().title('SpringBoot項目 后臺服務API接口文檔').description('使用 knife4j 搭建的后臺服務API接口文檔').termsOfServiceUrl('http://localhost:8080/').contact('lizhou').version('1.0.0').build(); }}

我們需要開放其靜態資源的訪問，啟動類實現 WebMvcConfigurer 接口，重寫 addResourceHandlers 方法

4、訪問文檔

啟動項目，訪問路徑http://localhost:8080/doc.html

三、注意

訪問時，如果提示 knife4j 文檔異常，檢查下自己的攔截器是否沒有放開 knife4j 所需要的請求

需要在攔截器，放開請求

package com.zyxx.common.config;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.context.annotation.Configuration;import org.springframework.web.servlet.config.annotation.InterceptorRegistration;import org.springframework.web.servlet.config.annotation.InterceptorRegistry;import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;import java.util.ArrayList;import java.util.List;/** * 注冊攔截器 * * @Author Lizhou **/@Configurationpublic class WebConfigurer implements WebMvcConfigurer { @Autowired private LoginInterceptor loginHandlerInterceptor; @Override public void addInterceptors(InterceptorRegistry registry) { InterceptorRegistration ir = registry.addInterceptor(loginHandlerInterceptor); // 攔截路徑 ir.addPathPatterns('/*'); // 不攔截路徑 List<String> irs = new ArrayList<String>(); irs.add('/login'); irs.add('/api/*'); // 開放knife4j irs.add('/doc.html'); irs.add('/service-worker.js'); irs.add('/swagger-resources'); ir.excludePathPatterns(irs); }}

四、使用

使用注解的方式與 swagger2 是一樣的

1、controller

import com.zyxx.common.utils.ResponseResult;import com.zyxx.sbm.service.MgtUserService;import io.swagger.annotations.Api;import io.swagger.annotations.ApiImplicitParam;import io.swagger.annotations.ApiImplicitParams;import io.swagger.annotations.ApiOperation;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.stereotype.Controller;import org.springframework.web.bind.annotation.GetMapping;import org.springframework.web.bind.annotation.RequestMapping;import org.springframework.web.bind.annotation.ResponseBody;/** * <p> * 用戶信息表 前端控制器 * </p> * * @author lizhou * @since 2020-06-30 */@Api(tags = '后臺管理端--用戶模塊')@Controller@RequestMapping('/mgt-user')public class MgtUserController { @Autowired private MgtUserService mgtUserService; @ApiOperation(value = '分頁查詢用戶數據', notes = '分頁查詢用戶數據') @ApiImplicitParams({ @ApiImplicitParam(name = 'page', value = '頁碼數', required = true), @ApiImplicitParam(name = 'limit', value = '每頁條數', required = true) }) @GetMapping('list') @ResponseBody public ResponseResult listUser(int page, int limit) { return mgtUserService.listUser(page, limit); }}

@Api，整個類的注釋@ApiOperation，方法上的注釋@ApiImplicitParams，參數列表的注釋@ApiImplicitParam，每一個參數的注釋

2、實體類

import com.baomidou.mybatisplus.annotation.IdType;import com.baomidou.mybatisplus.extension.activerecord.Model;import com.baomidou.mybatisplus.annotation.TableId;import java.io.Serializable;import io.swagger.annotations.ApiModel;import io.swagger.annotations.ApiModelProperty;import lombok.Data;import lombok.EqualsAndHashCode;import lombok.experimental.Accessors;/** * <p> * 用戶信息表 * </p> * * @author lizhou * @since 2020-06-30 */@Data@EqualsAndHashCode(callSuper = false)@Accessors(chain = true)@ApiModel(value='mgt_user對象', description='用戶信息對象')public class MgtUser extends Model<MgtUser> { private static final long serialVersionUID = 1L; @TableId(value = 'id', type = IdType.AUTO) @ApiModelProperty(value = '主鍵ID') private Long id; @ApiModelProperty(value = '姓名') private String name; @ApiModelProperty(value = '年齡') private Integer age; @ApiModelProperty(value = '技能') private String skill; @ApiModelProperty(value = '評價') private String evaluate; @ApiModelProperty(value = '分?jǐn)?shù)') private Long fraction; @Override protected Serializable pkVal() { return this.id; }}

@ApiModel，實體類的注解@ApiModelProperty，字段的注解
