原圖

代碼

src = cv2.imread('28.png') gray_src = cv2.cvtColor(src, cv2.COLOR_BGR2GRAY) #cv2.imshow('input image', src) #cv2.imshow('gray image', gray_src) #cv2.waitKey(0) gray_src = cv2.bitwise_not(gray_src) #二值化 binary_src = cv2.adaptiveThreshold(gray_src, 255, cv2.ADAPTIVE_THRESH_MEAN_C, cv2.THRESH_BINARY, 15, -2) cv2.namedWindow('result image', cv2.WINDOW_AUTOSIZE) cv2.imshow('result image', binary_src) #cv2.waitKey(0) # 提取水平線 src.shape[1]得到src列數 #hline = cv2.getStructuringElement(cv2.MORPH_RECT, (1, 1), (-1, -1)) hline = cv2.getStructuringElement(cv2.MORPH_RECT, (1, 4), (-1, -1)) #定義結構元素，卷積核 # 提取垂直線 src.shape[0]得到src行數 vline = cv2.getStructuringElement(cv2.MORPH_RECT, (4, 1), (-1, -1)) #vline = cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3)) # 這兩步就是形態學的開操作——先腐蝕再膨脹 #temp = cv2.erode(binary_src, hline) #腐蝕 #dst = cv2.dilate(temp, hline) #膨脹 # 開運算 dst = cv2.morphologyEx(binary_src, cv2.MORPH_OPEN, hline) #水平方向 dst = cv2.morphologyEx(dst, cv2.MORPH_OPEN, vline) #垂直方向 #將二指圖片的效果反轉既黑色變白色，白色變黑色。 非操作 dst = cv2.bitwise_not(dst) cv2.imshow('Final image', dst) cv2.waitKey(0)

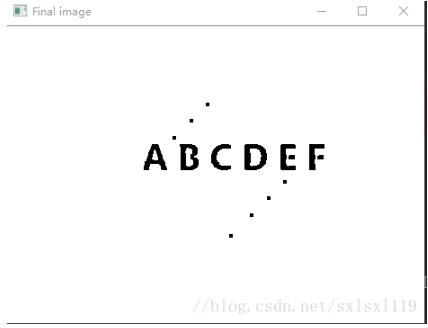

結果圖，還有一些點需要進一步處理

補充知識：Opencv 提取水平 垂直線，去除雜線，提取對象

我就廢話不多說了，大家還是直接看代碼吧~

#include<opencv2opencv.hpp>#include<iostream> using namespace std;using namespace cv; int main(int argc, char* argv[]){Mat src = imread('截圖3.jpg');if (src.empty()){return -1;}String strInput = 'input image';namedWindow(strInput, CV_WINDOW_AUTOSIZE);imshow(strInput, src);Mat dst;cvtColor(src, dst, CV_BGR2GRAY);//轉灰度imshow('output grap image', dst);Mat binimg;adaptiveThreshold(~dst, binimg, 255, ADAPTIVE_THRESH_MEAN_C, ADAPTIVE_THRESH_MEAN_C, 15, -2);//轉二值imshow('binary image', binimg);Mat hLine = getStructuringElement(MORPH_RECT, Size(src.cols/16, 1), Point(-1, -1));//水平結構Mat vLine = getStructuringElement(MORPH_RECT, Size(1, src.rows / 16), Point(-1, -1));//垂直結構 Mat kernel = getStructuringElement(MORPH_RECT, Size(3, 3), Point(-1, -1));//去除雜線 提取對象Mat tmp;//erode(binimg, tmp, vLine);//dilate(tmp, dst, vLine);morphologyEx(binimg, dst, CV_MOP_OPEN,hLine);bitwise_not(dst, dst);//取反blur(dst, dst, Size(3, 3), Point(-1, -1));imshow('Final image', dst); waitKey(0);return 0;}

以上這篇Python OpenCV去除字母后面的雜線操作就是小編分享給大家的全部?jī)?nèi)容了，希望能給大家一個參考，也希望大家多多支持好吧啦網。
