為什么要做接口自動化框架

1、業務與配置的分離

2、數據與程序的分離；數據的變更不影響程序

3、有日志功能，實現無人值守

4、自動發送測試報告

5、不懂編程的測試人員也可以進行測試

正常接口測試的流程是什么？

確定接口測試使用的工具----->配置需要的接口參數----->進行測試----->檢查測試結果----->生成測試報告

測試的工具：python+requests

接口測試用例：excel

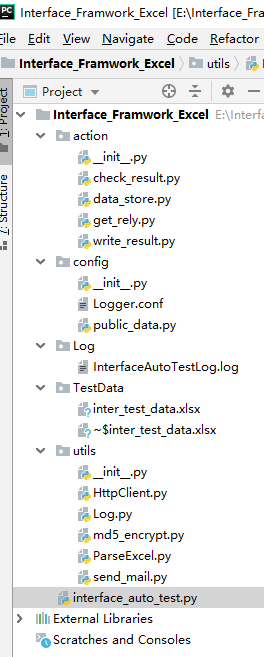

一、接口框架如下：

1、action包：用來存放關鍵字函數

2、config包：用來存放配置文件

3、TestData：用來存放測試數據，excel表

4、Log包：用來存放日志文件

5、utils包：用來存放公共的類

6、運行主程序interface_auto_test.py

7、Readme.txt：告訴團隊組員使用改框架需要注意的地方

二、接口的數據規范設計---Case設計

一個sheet對應數據庫里面一張表

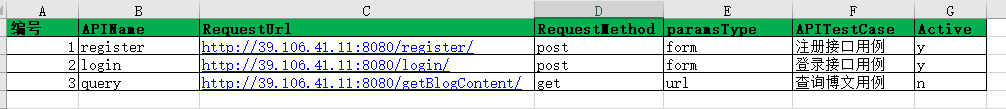

APIsheet存放編號；從1開始接口的名稱（APIName）；請求的url（RequestUrl）；請求的方法（RequestMethod）；傳參的方式（paramsType）：post/get請求方法不一樣用例說明（APITestCase）是否執行（Active）部分接口已測通，下次不用測試，直接把這里設置成N，跳過此接口

post與get的區別

查看post詳情

post請求參數一般是json串，參數放在from表單里面；參數一般不可見，相對來說安全性高些

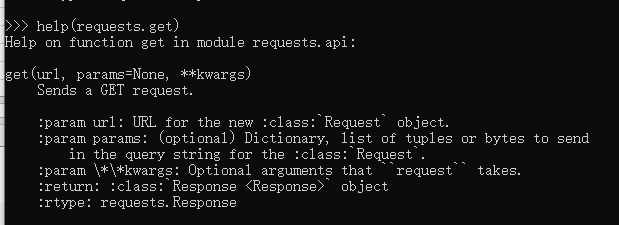

查看get詳情

get請求參數一般直接放在url里面

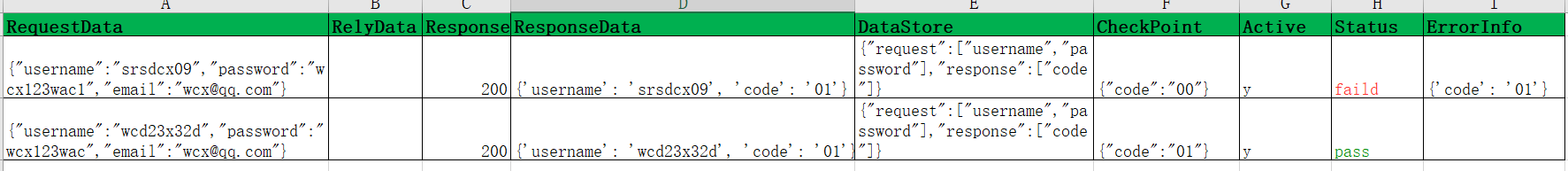

2.1注冊接口用例

RequestData：請求的數據（開發制定的傳參方式）RelyData：數據依賴ResponseCode：響應codeResponseData：響應數據DataStore：存儲的依賴數據；如果存在數據庫里面，在表里增加一個字段用來存依賴的數據（存儲的方式是編寫接口自動化的人員來設定的存儲方式）CheckPoint：檢查點Active：是否執行Status：執行用例的狀態，方便查看用例是否執行成功ErrorInfo：case運行失敗，失敗的錯誤信息；eg：是也本身的原因還是case設置失敗，還是其他原因

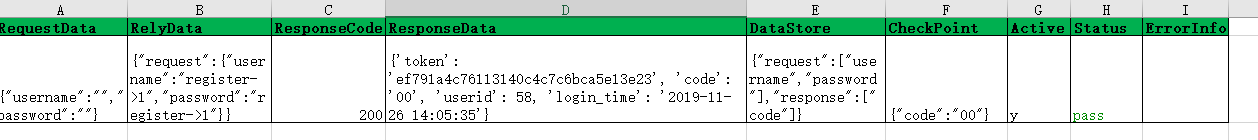

2.2登錄接口用例

RequestData：請求的數據（開發制定的傳參方式）RelyData：數據依賴（存儲的方式是編寫接口自動化的人員來設定的存儲方式）ResponseCode：響應codeResponseData：響應數據DataStore：存儲的依賴數據；如果存在數據庫里面，在表里增加一個字段用來存依賴的數據（存儲的方式是編寫接口自動化的人員來設定的存儲方式）CheckPoint：檢查點Active：是否執行Status：執行用例的狀態，方便查看用例是否執行成功ErrorInfo：case運行失敗，失敗的錯誤信息；eg：是也本身的原因還是case設置失敗，還是其他原因

重點說明下RelyData：數據依賴采取的是字典：key:value來存儲數據格式；{'request':{'username':'register->1','password':'register->1'},'response':{'code':'register->1'}}

格式化之后：

{ 'request':{ 'username':'register->1', 'password':'register->1' }, 'response':{ 'code':'register->1' }}

三、創建utils包：用來存放公共的類

3.1 ParseExcel.py 操作封裝excel的類（ParseExcel.py）

#encoding=utf-8import openpyxlfrom openpyxl.styles import Border, Side, Fontimport timeclass ParseExcel(object): def __init__(self): self.workbook = None self.excelFile = None self.font = Font(color = None) # 設置字體的顏色 # 顏色對應的RGB值 self.RGBDict = {’red’: ’FFFF3030’, ’green’: ’FF008B00’} def loadWorkBook(self, excelPathAndName): # 將excel文件加載到內存，并獲取其workbook對象 try: self.workbook = openpyxl.load_workbook(excelPathAndName) except Exception as err: raise err self.excelFile = excelPathAndName return self.workbook def getSheetByName(self, sheetName): # 根據sheet名獲取該sheet對象 try: # sheet = self.workbook.get_sheet_by_name(sheetName) sheet = self.workbook[sheetName] return sheet except Exception as err: raise err def getSheetByIndex(self, sheetIndex): # 根據sheet的索引號獲取該sheet對象 try: # sheetname = self.workbook.get_sheet_names()[sheetIndex] sheetname = self.workbook.sheetnames[sheetIndex] except Exception as err: raise err # sheet = self.workbook.get_sheet_by_name(sheetname) sheet = self.workbook[sheetname] return sheet def getRowsNumber(self, sheet): # 獲取sheet中有數據區域的結束行號 return sheet.max_row def getColsNumber(self, sheet): # 獲取sheet中有數據區域的結束列號 return sheet.max_column def getStartRowNumber(self, sheet): # 獲取sheet中有數據區域的開始的行號 return sheet.min_row def getStartColNumber(self, sheet): # 獲取sheet中有數據區域的開始的列號 return sheet.min_column def getRow(self, sheet, rowNo): # 獲取sheet中某一行,返回的是這一行所有的數據內容組成的tuple， # 下標從1開始，sheet.rows[1]表示第一行 try: rows = [] for row in sheet.iter_rows():rows.append(row) return rows[rowNo - 1] except Exception as err: raise err def getColumn(self, sheet, colNo): # 獲取sheet中某一列,返回的是這一列所有的數據內容組成tuple， # 下標從1開始，sheet.columns[1]表示第一列 try: cols = [] for col in sheet.iter_cols():cols.append(col) return cols[colNo - 1] except Exception as err: raise err def getCellOfValue(self, sheet, coordinate = None, rowNo = None, colsNo = None): # 根據單元格所在的位置索引獲取該單元格中的值,下標從1開始, # sheet.cell(row = 1, column = 1).value， # 表示excel中第一行第一列的值 if coordinate != None: try:return sheet[coordinate] except Exception as err:raise err elif coordinate is None and rowNo is not None and colsNo is not None: try:return sheet.cell(row = rowNo, column = colsNo).value except Exception as err:raise err else: raise Exception('Insufficient Coordinates of cell !') def getCellOfObject(self, sheet, coordinate = None, rowNo = None, colsNo = None): # 獲取某個單元格的對象，可以根據單元格所在位置的數字索引， # 也可以直接根據excel中單元格的編碼及坐標 # 如getCellObject(sheet, coordinate = ’A1’) or # getCellObject(sheet, rowNo = 1, colsNo = 2) if coordinate != None: try:# return sheet.cell(coordinate = coordinate)return sheet[coordinate] except Exception as err:raise err elif coordinate == None and rowNo is not None and colsNo is not None: try:return sheet.cell(row = rowNo,column = colsNo) except Exception as err:raise err else: raise Exception('Insufficient Coordinates of cell !') def writeCell(self, sheet, content, coordinate = None, rowNo = None, colsNo = None, style = None): #根據單元格在excel中的編碼坐標或者數字索引坐標向單元格中寫入數據， # 下標從1開始，參style表示字體的顏色的名字,比如red，green if coordinate is not None: try:# sheet.cell(coordinate = coordinate).value = contentsheet[coordinate] = contentif style is not None: sheet[coordinate]. font = Font(color = self.RGBDict[style])self.workbook.save(self.excelFile) except Exception as e:raise e elif coordinate == None and rowNo is not None and colsNo is not None: try:sheet.cell(row = rowNo,column = colsNo).value = contentif style: sheet.cell(row = rowNo,column = colsNo). font = Font(color = self.RGBDict[style])self.workbook.save(self.excelFile) except Exception as e:raise e else: raise Exception('Insufficient Coordinates of cell !') def writeCellCurrentTime(self, sheet, coordinate = None,rowNo = None, colsNo = None): # 寫入當前的時間，下標從1開始 now = int(time.time()) #顯示為時間戳 timeArray = time.localtime(now) currentTime = time.strftime('%Y-%m-%d %H:%M:%S', timeArray) if coordinate is not None: try:sheet.cell(coordinate = coordinate).value = currentTimeself.workbook.save(self.excelFile) except Exception as e:raise e elif coordinate == None and rowNo is not None and colsNo is not None: try:sheet.cell(row = rowNo, column = colsNo ).value = currentTimeself.workbook.save(self.excelFile) except Exception as e:raise e else: raise Exception('Insufficient Coordinates of cell !')if __name__ == ’__main__’: # 測試代碼 pe = ParseExcel() pe.loadWorkBook(r’D:ProgramSourceCodePython Source CodeWorkSpaceInterfaceFrame2018inter_test_data.xlsx’) sheetObj = pe.getSheetByName(u'API') print('通過名稱獲取sheet對象的名字：', sheetObj.title) # print help(sheetObj.rows) print('通過index序號獲取sheet對象的名字：', pe.getSheetByIndex(0).title) sheet = pe.getSheetByIndex(0) print(type(sheet)) print(pe.getRowsNumber(sheet)) #獲取最大行號 print(pe.getColsNumber(sheet)) #獲取最大列號 rows = pe.getRow(sheet, 1) #獲取第一行 for i in rows: print(i.value) # # 獲取第一行第一列單元格內容 # print pe.getCellOfValue(sheet, rowNo = 1, colsNo = 1) # pe.writeCell(sheet, u’我愛祖國’, rowNo = 10, colsNo = 10) # pe.writeCellCurrentTime(sheet, rowNo = 10, colsNo = 11)

3.2 封裝get/post請求（HttpClient.py）

import requestsimport jsonclass HttpClient(object): def __init__(self): pass def request(self, requestMethod, requestUrl, paramsType,requestData, headers =None, **kwargs): if requestMethod == 'post': print('---', requestData, type(requestData)) if paramsType == 'form':response = self.__post(url = requestUrl, data = json.dumps(eval(requestData)), headers = headers, **kwargs)return response elif paramsType == 'json':response = self.__post(url = requestUrl, json = json.dumps(eval(requestData)), headers = headers, **kwargs)return response elif requestMethod == 'get': request_url = requestUrl if paramsType == 'url':request_url = '%s%s' %(requestUrl, requestData) response = self.__get(url = request_url, params = requestData, **kwargs) return response def __post(self, url, data = None, json = None, headers=None,**kwargs): print('----') response = requests.post(url=url, data = data, json=json, headers=headers) return response def __get(self, url, params = None, **kwargs): response = requests.get(url, params = params, **kwargs) return responseif __name__ == '__main__': hc = HttpClient() res = hc.request('get', 'http://39.106.41.11:8080/getBlogContent/', 'url',’2’) print(res.json())

3.3 封裝MD5（md5_encrypt）

import hashlibdef md5_encrypt(text): m5 = hashlib.md5() m5.update(text.encode('utf-8')) value = m5.hexdigest() return valueif __name__ == '__main__': print(md5_encrypt('sfwe'))

3.4 封裝Log

import loggingimport logging.configfrom config.public_data import baseDir# 讀取日志配置文件logging.config.fileConfig(baseDir + 'configLogger.conf')# 選擇一個日志格式logger = logging.getLogger('example02')#或者example01def debug(message): # 定義dubug級別日志打印方法 logger.debug(message)def info(message): # 定義info級別日志打印方法 logger.info(message)def warning(message): # 定義warning級別日志打印方法 logger.warning(message)

3.5 封裝發送Email類

import smtplibfrom email.mime.text import MIMETextfrom email.mime.multipart import MIMEMultipartfrom email.header import Headerfrom ProjVar.var import *import osimport smtplibfrom email import encodersfrom email.mime.base import MIMEBasefrom email.mime.text import MIMETextfrom email.mime.multipart import MIMEMultipartfrom email.header import Headerfrom email.utils import formataddrdef send_mail(): mail_host='smtp.126.com' #設置服務器 mail_user='testman1980' #用戶名 mail_pass='wulaoshi1980' #口令 sender = ’testman1980@126.com’ receivers = [’2055739@qq.com’,'testman1980@126.com'] # 接收郵件，可設置為你的QQ郵箱或者其他郵箱 # 創建一個帶附件的實例 message = MIMEMultipart() message[’From’] = formataddr(['光榮之路吳老師', 'testman1980@126.com']) message[’To’] = ’,’.join(receivers) subject = ’自動化測試執行報告’ message[’Subject’] = Header(subject, ’utf-8’) message['Accept-Language']='zh-CN' message['Accept-Charset']='ISO-8859-1,utf-8,gbk' # 郵件正文內容 message.attach(MIMEText(’最新執行的自動化測試報告，請參閱附件內容！’, ’plain’, ’utf-8’)) # 構造附件1，傳送測試結果的excel文件 att = MIMEBase(’application’, ’octet-stream’) att.set_payload(open(ProjDirPath+'testdatatestdata.xlsx', ’rb’).read()) att.add_header(’Content-Disposition’, ’attachment’, filename=(’gbk’, ’’, '自動化測試報告.xlsx')) encoders.encode_base64(att) message.attach(att) ''' # 構造附件2，傳送當前目錄下的 runoob.txt 文件 att2 = MIMEText(open(’e:a.py’,’rb’).read(), ’base64’, ’utf-8’) att2['Content-Type'] = ’application/octet-stream’ att2['Content-Disposition'] = ’attachment; filename='a.py'’ message.attach(att2) ''' try: smtpObj = smtplib.SMTP(mail_host) smtpObj.login(mail_user, mail_pass) smtpObj.sendmail(sender, receivers, message.as_string()) print('郵件發送成功') except smtplib.SMTPException as e: print('Error: 無法發送郵件', e)if __name__ == '__main__': send_mail()

四、 創建config包 用來存放公共的參數、配置文件、長時間不變的變量值

創建public_data.py

import os# 整個項目的根目錄絕對路勁baseDir = os.path.dirname(os.path.dirname(__file__))# 獲取測試數據文件的絕對路徑file_path = baseDir + '/TestData/inter_test_data.xlsx'API_apiName = 2API_requestUrl = 3API_requestMothod = 4API_paramsType = 5API_apiTestCaseFileName = 6API_active = 7CASE_requestData = 1CASE_relyData = 2CASE_responseCode = 3CASE_responseData = 4CASE_dataStore = 5CASE_checkPoint = 6CASE_active = 7CASE_status = 8CASE_errorInfo = 9# 存儲請求參數里面依賴的數據REQUEST_DATA = {}# 存儲響應對象中的依賴數據RESPONSE_DATA = {}if __name__=='__main__': print(file_path) print(baseDir)

五、創建TestData目錄，用來存放測試文件

inter_test_data.xlsx

六、創建action包，用來存放關鍵字函數

6.1 解決數據依賴 （GetRely.py）

from config.public_data import REQUEST_DATA, RESPONSE_DATAfrom utils.md5_encrypt import md5_encryptREQUEST_DATA = {'用戶注冊':{'1':{'username':'zhangsan', 'password':'dfsdf23'}, 'headers':{'cookie':'asdfwerw'}}}RESPONSE_DATA = {'用戶注冊':{'1':{'code':'00'}, 'headers':{'age':2342}}}class GetRely(object): def __init__(self): pass @classmethod def get(self, dataSource, relyData, headSource = {}): print(type(dataSource)) print(dataSource) data = dataSource.copy() for key, value in relyData.items(): if key == 'request':#說明應該去REQUEST_DATA中獲取for k, v in value.items(): interfaceName, case_idx = v.split('->') val = REQUEST_DATA[interfaceName][case_idx][k] if k == 'password': data[k] = md5_encrypt(val) else: data[k] = val elif key == 'response':# 應該去RESPONSE_DATA中獲取for k, v in value.items(): interfaceName, case_idx = v.split('->') data[k] = RESPONSE_DATA[interfaceName][case_idx][k] elif key == 'headers':if headSource: for key, value in value.items(): if key == 'request': for k, v in value.items():for i in v: headSource[i] = REQUEST_DATA[k]['headers'][i] elif key == 'response': for i, val in value.items():for j in val: headSource[j] = RESPONSE_DATA[i]['headers'][j] return '%s' %dataif __name__ == '__main__': s = {'username': '', 'password': '','code':''} h = {'cookie':'123', 'age':332} rely = {'request': {'username': '用戶注冊->1', 'password': '用戶注冊->1'}, 'response':{'code':'用戶注冊->1'}, 'headers':{'request':{'用戶注冊':['cookie']},'response':{'用戶注冊':['age']}} } print(GetRely.get(s, rely, h))

6.2 解決數據存儲（RelyDataStore.py）

from config.public_data import RESPONSE_DATA, REQUEST_DATAclass RelyDataStore(object): def __init__(self): pass @classmethod def do(cls, storePoint, apiName, caseId, request_source = {}, response_source = {}, req_headers={}, res_headers = {}): for key, value in storePoint.items(): if key == 'request':# 說明需要存儲的依賴數據來自請求參數,應該將數據存儲到REQUEST_DATAfor i in value: if i in request_source: val = request_source[i] if apiName not in REQUEST_DATA: # 說明存儲數據的結構還未生成，需要指明數據存儲結構 REQUEST_DATA[apiName]={str(caseId): {i: val}} else: #說明存儲數據結構中最外層結構已存在 if str(caseId) in REQUEST_DATA[apiName]:REQUEST_DATA[apiName][str(caseId)][i] = val else:# 說明內層結構不完整，需要指明完整的結構REQUEST_DATA[apiName][str(caseId)] = {i: val} else: print('請求參數中不存在字段' + i) elif key == 'response':#說明需要存儲的依賴數據來自接口的響應body,應該將數據存儲到RESPONSE_DATAfor j in value: if j in response_source: val = response_source[j] if apiName not in RESPONSE_DATA: # 說明存儲數據的結構還未生成，需要指明數據存儲結構 RESPONSE_DATA[apiName]={str(caseId): {j: val}} else: #說明存儲數據結構中最外層結構已存在 if str(caseId) in RESPONSE_DATA[apiName]:RESPONSE_DATA[apiName][str(caseId)][j] = val else:# 說明內層結構不完整，需要指明完整的結構RESPONSE_DATA[apiName][str(caseId)] = {j: val} else: print('接口的響應body中不存在字段' + j) elif key == 'headers':for k, v in value.items(): if k == 'request': # 說明需要往REQUEST_DATA變量中寫入存儲數據 for item in v: if item in req_headers:header = req_headers[item]if 'headers' in REQUEST_DATA[apiName]: REQUEST_DATA[apiName]['headers'][item] = headerelse: REQUEST_DATA[apiName]['headers'] = {item: header} elif k == 'response': # 說明需要往RESPONSE_DATA變量中寫入存儲數據 for it in v: if it in res_headers:header = res_headers[it]if 'headers' in RESPONSE_DATA[apiName]: RESPONSE_DATA[apiName]['headers'][it] = headerelse: RESPONSE_DATA[apiName]['headers'] = {item: header} print(REQUEST_DATA) print(RESPONSE_DATA)if __name__ == '__main__': r = {'username': 'srwcx01', 'password': 'wcx123wac1', 'email': 'wcx@qq.com'} req_h = {'cookie':'csdfw23'} res_h = {'age':597232} s = {'request': ['username', 'password'], 'response': ['userid'],'headers':{'request':['cookie'], 'response':['age']}} res = {'userid': 12, 'code': '00'} RelyDataStore.do(s, 'register', 1, r, res, req_headers=req_h, res_headers=res_h) print(REQUEST_DATA) print(RESPONSE_DATA)

6.3 校驗數據結果（CheckResult.py）

import reclass CheckResult(object): def __init__(self): pass @classmethod def check(self, responseObj, checkPoint): responseBody = responseObj.json() # responseBody = {'code': '', 'userid': 12, 'id': '12'} errorKey = {} for key, value in checkPoint.items(): if key in responseBody:if isinstance(value, (str, int)): # 等值校驗 if responseBody[key] != value: errorKey[key] = responseBody[key]elif isinstance(value, dict): sourceData = responseBody[key] if 'value' in value: # 模糊匹配校驗 regStr = value['value'] rg = re.match(regStr, '%s' %sourceData) if not rg: errorKey[key] = sourceData elif 'type' in value: # 數據類型校驗 typeS = value['type'] if typeS == 'N': # 說明是整形校驗 if not isinstance(sourceData, int):errorKey[key] = sourceData else:errorKey[key] = '[%s] not exist' %key return errorKeyif __name__ == '__main__': r = {'code': '00', 'userid': 12, 'id': 12} c = {'code': '00', 'userid': {'type': 'N'}, 'id': {'value': 'd+'}} print(CheckResult.check(r, c))

6.4 往excel里面寫結果

from config.public_data import *def write_result(wbObj, sheetObj, responseData, errorKey, rowNum): try: # 寫響應body wbObj.writeCell(sheetObj, content='%s' %responseData, rowNo = rowNum, colsNo=CASE_responseData) # 寫校驗結果狀態及錯誤信息 if errorKey: wbObj.writeCell(sheetObj, content='%s' %errorKey, rowNo=rowNum, colsNo=CASE_errorInfo) wbObj.writeCell(sheetObj, content='faild', rowNo=rowNum, colsNo=CASE_status, style='red') else: wbObj.writeCell(sheetObj, content='pass', rowNo=rowNum, colsNo=CASE_status, style='green') except Exception as err: raise err

七、創建Log目錄用來存放日志

八、主函數

#encoding=utf-8import requestsimport jsonfrom action.get_rely import GetRelyfrom config.public_data import *from utils.ParseExcel import ParseExcelfrom utils.HttpClient import HttpClientfrom action.data_store import RelyDataStorefrom action.check_result import CheckResultfrom action.write_result import write_resultfrom utils.Log import *def main(): parseE = ParseExcel() parseE.loadWorkBook(file_path) sheetObj = parseE.getSheetByName('API') activeList = parseE.getColumn(sheetObj, API_active) for idx, cell in enumerate(activeList[1:], 2): if cell.value == 'y': #需要被執行 RowObj = parseE.getRow(sheetObj, idx) apiName = RowObj[API_apiName -1].value requestUrl = RowObj[API_requestUrl - 1].value requestMethod = RowObj[API_requestMothod - 1].value paramsType = RowObj[API_paramsType - 1].value apiTestCaseFileName = RowObj[API_apiTestCaseFileName - 1].value # 下一步讀取用例sheet表，準備執行測試用例 caseSheetObj = parseE.getSheetByName(apiTestCaseFileName) caseActiveObj = parseE.getColumn(caseSheetObj, CASE_active) for c_idx, col in enumerate(caseActiveObj[1:], 2):if col.value == 'y': #需要執行的用例 caseRowObj = parseE.getRow(caseSheetObj, c_idx) requestData = caseRowObj[CASE_requestData - 1].value relyData = caseRowObj[CASE_relyData - 1].value responseCode = caseRowObj[CASE_responseCode - 1].value responseData = caseRowObj[CASE_responseData - 1].value dataStore = caseRowObj[CASE_dataStore -1].value checkPoint = caseRowObj[CASE_checkPoint - 1].value #發送接口請求之前需要做一下數據依賴的處理 if relyData: logging.info('處理第%s個接口的第%s條用例的數據依賴！') requestData = GetRely.get(eval(requestData), eval(relyData)) httpC = HttpClient() response = httpC.request(requestMethod=requestMethod, requestData=requestData, requestUrl=requestUrl, paramsType=paramsType ) # 獲取到響應結果后，接下來進行數據依賴存儲邏輯實現 if response.status_code == 200: responseData = response.json() # 進行依賴數據存儲 if dataStore: RelyDataStore.do(eval(dataStore), apiName, c_idx - 1, eval(requestData), responseData) # 接下來就是校驗結果 else: logging.info('接口【%s】的第【%s】條用例，不需要進行依賴數據存儲！' %(apiName, c_idx)) if checkPoint: errorKey = CheckResult.check(response, eval(checkPoint)) write_result(parseE, caseSheetObj, responseData, errorKey, c_idx) else: logging.info('接口【%s】的第【%s】條用例，執行失敗，接口協議code非200！' %(apiName, c_idx))else: logging.info('第%s個接口的第%s條用例，被忽略執行！' %(idx -1, c_idx-1)) else: logging.info('第%s行的接口被忽略執行！' %(idx -1))if __name__=='__main__': main()

框架待完善~~請各路神仙多多指教~~
